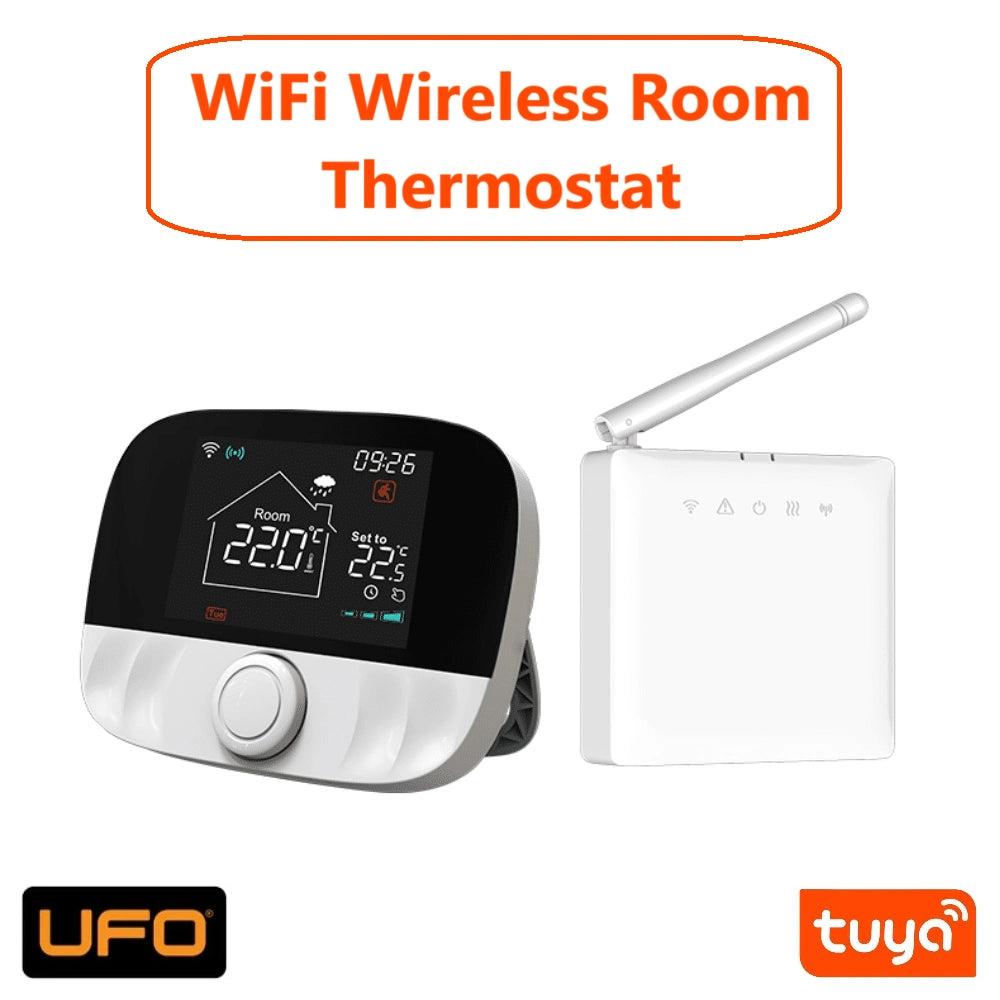

UFO WiFi Wireless Thermostat, Smart Temperature Control Device

Next-generation comfort and energy savings combined! The Tuya-compatible WiFi Wireless Room Thermostat is designed to help you manage your home's heating with smart technologies. Whether you place it on a desktop or mount it on a wall, you can control the temperature from anywhere in your home and achieve perfect comfort in your living spaces.

General Features

• Tuya Compatible WiFi Connection : You can remotely control your thermostat via the “Smart Life” or “Tuya Smart” applications and manage temperature changes in real time.
• Voice Assistant Support : It works integrated with popular voice assistants like Amazon Alexa, Google Assistant, and Yandex Alice. You can easily issue commands by saying, “Alexa, turn up the heat!”
• RF (433MHz) Connection : Thanks to wireless RF transceiver technology, it communicates effectively up to 200 meters (open space), eliminating cable clutter.
• Smart Weekly Program : You can set up to 6 time & temperature settings at different time intervals for each day of the week, maximizing your energy savings.
• Manual and Automatic Mode : If you wish, you can fix the temperature manually or create daily/weekly scenarios in automatic programming mode.
• Child Lock : You can activate the child lock for security and to prevent misuse.
• Frost Protection : Eliminates the risk of freezing by activating minimum temperature protection in cold weather.
• Easy Installation : Designed for desktop or wall-mounted use, it offers quick and effortless installation with its compact structure.
• Large, Illuminated Display : Thanks to its large digital display, you can easily read temperature values and time information day or night.

Technical Specifications

Thermostat

• Power Supply : 2×1.5V alkaline AA batteries or continuous power via USB (Type-C)
• Temperature Setting Range : 5°C ~ 95°C
• Ambient Temperature : 5°C ~ 50°C
• Measurement Accuracy : ±0.1°C
• Setting Accuracy : ±0.5°C
• Wireless Frequency : 433MHz (Duplex FSK), max. 200m in open area
• Protection Level : IP20

Receiver

• Supply Voltage : AC 100~240V, 50/60Hz
• Power Consumption : Max. 1W
• Ambient Temperature : 5°C ~ 50°C
• Wireless Frequency : 433MHz (Duplex FSK), max. 200m in open area
• Installation : Can be mounted on the wall, you can easily connect it using your existing boiler/heating system cables.

Product View

Thermostat

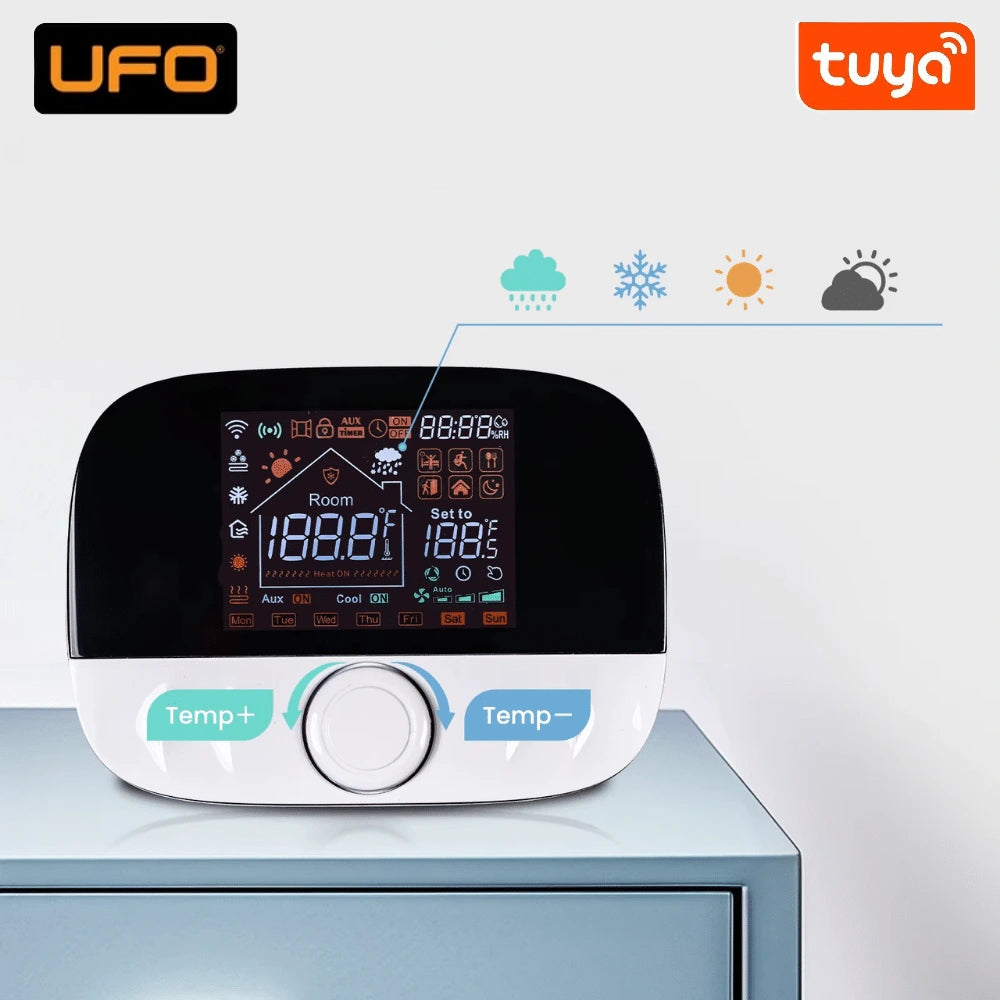

• Digital Display : Shows temperature, time and mode information.
• Knob (Rotary Knob) : Designed to quickly adjust temperature and menu settings.
• Power Key : Allows you to turn the thermostat on and off.

Buyer

• Antenna : Provides high performance in wireless signal communication.
• SET Button : Pairing and setting function with RF thermostat.
• LED Indicators :
  • Power : Indicates whether the device's power is on/off.
  • Heating : Indicates whether the boiler or heater is active.
  • Fault : Gives warning in case of error.

Installation and Assembly

1. Placing the Thermostat
   • Desktop Use : Place the device upright on a table or flat surface.
   • Wall Mounting : Fix the thermostat to the wall using the mounting bracket or screw holes at the appropriate height.

   Note : The maximum wireless communication distance between the thermostat and receiver is 200m (in open space). In indoor conditions, the distance may vary.

2. Thermostat Power Supply
   • USB Type-C (Recommended) : You can ensure continuous power by connecting the Type-C cable.
   • 2×AA Batteries (Alkaline) : Open the battery cover and insert the batteries in the correct direction. For long life, choose new, high-quality batteries.
   • Two Power Sources at the Same Time : Using both USB and batteries at the same time allows the thermostat to continue working in case of sudden power outages.
3. RF Receiver Installation
   • Electrical Connection :
     1. Disconnect power (make sure there is no power to the boiler/heating system).
     2. Open the front cover of the receiver and connect the cables according to the diagram.
     3. If necessary, apply concealed wiring (in-wall) or open wiring methods.
     4. Secure the connectors and snap the cover into place.
   • Connection Diagram : Correctly connect the boiler or motorized valve cables to the COM, NO, NC etc. terminals indicated on the device.

Thermostat and Receiver Pairing

• Factory Default : The device comes as a set and is already paired.
• Re-pairing (If Necessary):
  1. While the receiver is powered on, press and hold the "SET" button for 3 seconds. The pairing LED on the receiver will begin to flash.
  2. With the thermostat in the off position, press and hold the "Power" button for 3 seconds. This will enter pairing mode.
  3. When pairing is completed, the receiver buzzer will sound and the “Pairing” light will turn solid.

Tip : You can pair multiple thermostats to a single RF receiver.

WiFi Connection and Mobile Application

1. Download Smart Life/Tuya Smart App
   • Search for and download the “Smart Life” or “Tuya Smart” app from the App Store or Google Play.
   • You can also quickly access the application by scanning the QR code.
2. Register or Login
   • To create a new account, enter your phone number, get a verification code, and set a password.
   • If you have an existing account, you can log in directly.
3. Adding a Device
   • With the thermostat off, press and hold the "Power" button for 3 seconds to enter WiFi configuration mode. "-" and "P" will begin to flash on the display.
   • Tap the “+” icon in the app and wait for the device scan to complete.
   • Enter the 2.4GHz WiFi network and password, click “Next” to continue.
   • Once the connection is confirmed, complete the installation by clicking “Done”.

Important : Bluetooth and WiFi must be turned on on your phone and the application must be given Bluetooth access permission.

Usage and Basic Functions

1. On/Off
   • Short press the “Power” button to turn the thermostat on and off.
2. Temperature Change
   • While the device is on, you can raise or lower the temperature in 0.5°C steps by turning the “Knob” (rotary knob).
3. Time Settings
   • With the thermostat off, press and hold the "Power" button for 3 seconds. Adjust the day, hour, and minute settings using the "Knob." Confirm by briefly pressing the "Power" button.
4. Weekly Schedule
   • When the thermostat is on, you can set 6 different time & temperature values for each day of the week (or 5+2, 6+1, 7 day mode).
   • Change the time/temperature value with the “Knob” and save it by pressing the “Power” button briefly.
5. Manual & Automatic Mode
   • You can switch between manual (M) and automatic (A) modes by short pressing the “Knob” button.
6. Child Lock
   • You can activate or deactivate the lock by pressing the “Power” + “Knob” keys for 3 seconds.
7. Freeze Protection
   • When you activate the frost protection mode, the heating system will automatically activate when the temperature drops to a certain lower level.
8. Low Battery Warning
   • When the battery voltage drops below 2.3V, the battery icon will flash on the screen. It is recommended that you replace the batteries as soon as possible.

Voice Assistant Commands

• Amazon Alexa : “Alexa, turn on the heater!”, “Alexa, turn up the heat by 1 degree!” etc.
• Google Assistant : “Ok Google, turn off the heater!”, “Ok Google, set the thermostat to 26 degrees!” etc.

Note : You can customize the thermostat name on voice assistants as desired. The temperature units (°C or °F) for the thermostat and voice assistant must be the same.

Why Tuya Compatible WiFi Wireless Room Thermostat?

• Easy Installation, Practical Use : Flexible design that allows you to position it both on the desktop and on the wall.
• Integrated into the Smart Home Ecosystem : Thanks to the Tuya infrastructure, it can work synchronously with lights, security cameras and other smart devices.
• Energy Savings : Fine-tuned temperature control and weekly scheduling feature help you save on your energy bills.
• Comprehensive Control : Easily adjust the temperature via the internet whether you are at home or away.
• Two-Way Power Supply : Even during power outages, your thermostat continues to work thanks to batteries.

Step into the comfort of modern living and control your home's temperature with smart technologies! Achieving the ideal temperature in every season is now much easier with the Tuya Compatible WiFi Wireless Room Thermostat.
